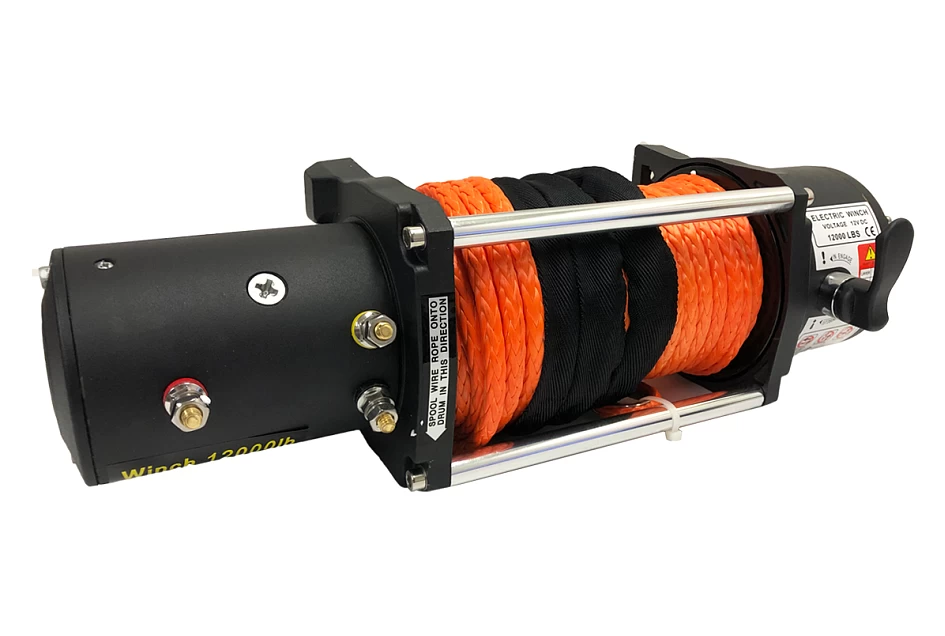

CANE TOAD EQUIPElectric Winch 12000 LBS 6hp 12v Motor Wireless Controller 4X4 Syntheic Rope 26m Recovery
Electric Winch 12000 LBS 6hp 12v Motor Wireless Controller 4X4 Syntheic Rope 26m Recovery
SKU A-Winch-12000BLa
Electric Winch 12000 LBS 6hp 12V Motor Wireless Controller 4X4 Syntheic Rope
Description
1. Unbeatable value for money – reliable affordable and massive 12,000lb of pulling power.
2. 6HP Motor 265:1 Gearbox ratio and handy wired control.
3. NEW MASSIVE 6 HORSEPOWER MOTOR, FASTER, SMOOTHER and STRONGER.
4. NEW 265:1 GEAR REDUCTION RATIO - For more torque and greater pulling power
5. NEW RE-ENGINEERED, UPGRADED BRAKE - Larger surface area for better braking power, to hold the heaviest 4WDs on the steepest tracks.
6. NEW WIRED REMOTE & Wireless - All built into one unit so you'll be in control no matter the situation
7.NEW THICKER 9.5MM SYNTHETIC ROPE - New, stronger Ultra High Molecular Weight Polyethylene rope, lightweight but high strength.
8.PRECISION ENGINEERED - The 3-stage planetary gearbox means smooth and quiet operation over long periods. You'll have to hear it to believe it!
9.TRIED & TESTED - Coming from a long line of winches used all around Australia
10.TOUGH - Built for the punishment that Aussie 4WDers put their gear through everyday
11. 10" x 4.5" BOLT PATTERN
Standard bolt pattern to suit most bullbars or winch cradles - plus easy DIY installation and wiring.
Specifications
Rated Single Line Pull
|
Rated Single Line Pull |
12,000lbs (5,443kgs) |
|
Motor |
6hp / 4.5kW Series Wound |
|
Main Body |
Sealed |
|
Control |
Wired (3.7m detachable lead) |
|
Gear reduction ratio |
265:1 |
|
Clutch |
Keyway Cam |
|
Braking Action |
Automatic in the drum |
|
Battery Leads |
2 gauge, 1.7m long |
|
Rope |
9.5mm X 26m Ultra High Molecular Weight Polyethylene |
|
Dimensions |
20.5/8" X 6.1/4" X 7.5/8" |
|
Bolt pattern |
10" X 4.5" (254mm X 114.3mm) |
|
Net Weight |
37kg |
| Colour | Black |
DC12V Line Speed & AMP Draw (First Layer)
|
Rated Line Pull (lb/kg) |
No Load |
4,000/1,818 |
8,000/3,629 |
12,000/5,443 |
|
Line Speed (ft/min) |
21.3 |
9.4 |
6.5 |
4.16 |
|
Line Speed (m/min) |
6.5 |
2.85 |
2 |
1.4 |
|
Motor 12V (Amps) |
70 |
170 |
290 |
430 |
12,000lb Line Pull & Cable Capacity
|
Layers of cable |
1 |
2 |
3 |
4 |
|
Rated line pull per layer (lbs/kg) |
12,000/ |
9,210/ |
8,030/ |
6,894/ |
|
Cumulative cable capacity (ft/m) |
17/ |
41/ |
72/ |
91.89/ |
|
Layers of cable |
1 |
2 |
3 |
4 |
|
Rated line pull per layer (lbs/kg) |
12,000/ |
9,210/ |
8,030/ |
6,894/ |
|
Cumulative cable capacity (ft/m) |
17/ |
41/ |
72/ |
91.89/ |
Warranty
1 Year Warranty
Notes
FAIRLEAD INCLUDED
